SensiTyper tutorial - Analysis of Neisseria gonorrhoeae WHO reference strains

Introduction

This tutorial demonstrates a complete SensiTyper workflow using WHO Neisseria gonorrhoeae reference strains with known antimicrobial resistance (AMR) profiles.

Prerequisites:

  • Python 3.8+
  • ARIBA installed (conda install -c bioconda ariba)
  • Sensityping scripts and databases (see README.md for installation)

Tutorial Dataset

We will use whole-genome sequencing Illumina data produced from 29 N. gonorrhoeae WHO reference strains representing diverse resistance profiles. FASTQ files for these strains can be obtained from the European Nucleotide Archive (ENA) study accession PRJNA1067895.

Pre-computed outputs from running this tutorial are bundled with the package (they are also in src/sensityper/resources/examples/ of the GitHub repository). Copy them to your working directory with the examples command:

sensityper examples

This creates an examples/ folder with the following content:

examples/
├── ariba_output/                         # ARIBA results per strain
│   ├── WHO_A_SRR27944640_ARIBA/
│   │   └── report_complete.tsv
│   ├── WHO_B_SRR27944628_ARIBA/
│   │   └── report_complete.tsv
│   ├── ... (one folder per strain)
│   └── ariba_summary.csv                 # ARIBA summary — input for sensitype
└── sensityper_output/                    # SensiTyper results
    ├── WHO_strains_sensitype.tsv         # Resistance profiles
    ├── WHO_strains_sensitreat.tsv        # Treatment recommendations
    ├── WHO_strains_sensitreat.html       # Interactive combined HTML report
    └── alert_output.tsv                  # XDR / no-treatment isolates

Step 1: Prepare FASTQ Data

First, download the FASTQ files for all or a subset of the following strains from the ENA PRJNA1067895. Here is a table with individual run accessions for each strain:

Strain Run accession
WHO_A SRR27944640
WHO_B SRR27944628
WHO_C SRR27944606
WHO_D SRR27944595
WHO_E SRR27944586
WHO_F SRR27944585
WHO_G SRR27944584
WHO_H SRR27944583
WHO_I SRR27944638
WHO_J SRR27944637
WHO_K SRR27944636
WHO_L SRR27944635
WHO_M SRR27944634
WHO_N SRR27944633
WHO_O SRR27944632
WHO_P SRR27944631
WHO_Q SRR27944630
WHO_R SRR27944629
WHO_S SRR27944627
WHO_S2 SRR27944626
WHO_T SRR27944625
WHO_U SRR27944624
WHO_V SRR27944623
WHO_W SRR27944622
WHO_X SRR27944621
WHO_Y SRR27944620
WHO_Z SRR27944619
WHO_alpha SRR27944639
WHO_beta SRR27944617

File Naming Convention

FASTQ files must follow one of these naming patterns:

{sample}_1.fastq.gz / {sample}_2.fastq.gz
{sample}_R1.fastq.gz / {sample}_R2.fastq.gz
{sample}_R1_001.fastq.gz / {sample}_R2_001.fastq.gz

(Optional) Standardize File Naming

If your FASTQ files have inconsistent naming, use the rename module:

# Preview changes (dry-run)
sensityper rename \
    --directories examples/ \
    --pre

# Execute renaming
sensityper rename \
    --directories examples/ \

Step 2: Run ARIBA

ARIBA identifies antimicrobial resistance genes and mutations from whole-genome sequencing data.

Command

sensityper ariba \
    --input_dirs /path/to/PRJNA1067895_Illumina \
    --output_dir PRJNA1067895_ARIBA \
    --threads 8

Arguments:

  • --input_dirs: Directory containing FASTQ files
  • --output_dir: Where to save ARIBA results
  • --threads: CPU cores to use (adjust based on your system)

Expected Runtime

  • ~2-5 minutes per isolate (depending on CPU)

Expected Output

Output folders are named {strain_accession}_ARIBA. The pre-computed results for this dataset are in examples/ariba_output/:

PRJNA1067895_ARIBA/
├── WHO_A_SRR27944640_ARIBA/
│   └── report_complete.tsv
├── WHO_B_SRR27944628_ARIBA/
│   └── report_complete.tsv
├── ... (one folder per strain)
└── ariba_summary.csv          ← Main output for next step

Verify Success

Check that ariba_summary.csv was created:

head -n 3 PRJNA1067895_ARIBA/ariba_summary.csv

Expected Output (truncated):

name,penA.cluster,penA.match,penA.assembled,penA.pct_coverage,...
WHO_A_SRR27944640,yes,yes,yes,100,...
WHO_B_SRR27944628,yes,yes,yes,100,...

A pre-computed version is available at examples/ariba_output/ariba_summary.csv.

Note on paths: the name column of the bundled ariba_summary.csv holds paths relative to the working directory (examples/ariba_output/<sample>_ARIBA/report_complete.tsv). The sensitype module opens each of those per-sample reports to confirm wild-type positions, so run the commands below from the directory that contains the copied examples/ folder. To run from anywhere else, rewrite that column to absolute paths first.

Step 3: Generate Resistance Profiles

The sensitype module analyzes ARIBA output to identify genetic determinants of resistance and outputs a list of antibiotics each strain is susceptible to.

Command

sensityper sensitype \
    --input_AMRtable examples/ariba_output/ariba_summary.csv \
    --sensiscript_outfile WHO_strains_sensitype.tsv

Arguments:

  • --input_AMRtable: ARIBA summary CSV from Step 2
  • --sensiscript_outfile: Output file path (TSV format)
  • --antibiotics: (Optional) Comma-separated list to analyze specific antibiotics (default: all 8)

Expected Runtime

  • ~5-15 seconds for 29 isolates

Expected Output Files

  1. WHO_strains_sensitype.tsv - Tab-separated resistance mechanisms
  2. WHO_strains_sensitype.html - Interactive HTML table

Pre-computed versions are available at examples/sensityper_output/.

Inspect WHO_strains_sensitype.tsv

head -n 3 WHO_strains_sensitype.tsv | cut -f1-4

Expected Output (truncated):

isolate                   treatment recommendation  ceftriaxone_NWT  ceftriaxone_WT
WHO_A_SRR27944640         ceftriaxone,azithromycin                   penA.mosaic_WT
WHO_B_SRR27944628         ceftriaxone,azithromycin                   penA.mosaic_WT

Interpreting Results

Columns:

  • isolate: Sample identifier
  • treatment recommendation: Comma-separated list of suitable antibiotics
  • {antibiotic}_NWT: Non-Wild-Type (resistance mutations, RED in HTML)
  • {antibiotic}_WT: Wild-Type (susceptibility markers, GREY in HTML)

Example: WHO_A_SRR27944640

ceftriaxone_NWT: (empty)
ceftriaxone_WT:  penA.A311_WT,penA.V316_WT,penA.A501_WT
azithromycin_NWT: (empty)
azithromycin_WT: 23S.A2059_WT,23S.C2611_WT,mtrC.WT,mtrD.WT
ciprofloxacin_NWT: (empty)
ciprofloxacin_WT: gyrA.D95_WT,gyrA.S91_WT,parC.D86_WT,parC.E91_WT,parC.S87_WT
spectinomycin_NWT: rpsE.T24P
spectinomycin_WT: 16S.C1184_WT
gepotidacin_NWT: (empty)
gepotidacin_WT: gyrA.A92_WT,parC.D86_WT

Interpretation:

  • Ceftriaxone: Susceptible (no key penA mutations)
  • Azithromycin: Susceptible (no key 23S rRNA or mtrD mutations)
  • Ciprofloxacin: Susceptible (no key gyrA or parC mutations)
  • Spectinomycin: Resistant (rpsE T24P)
  • Gepotidacin: Susceptible (neither gyrA A92T nor parC D86N)
  • Treatment: Suitable for ceftriaxone + azithromycin dual therapy

Example: WHO_Q_SRR27944630 (XDR)

ceftriaxone_NWT: penA.60.001,penA.A311V,penA.V316T
ceftriaxone_WT: penA.A501_WT
azithromycin_NWT: 23S.A2059G[99.9%]
azithromycin_WT: 23S.C2611_WT,mtrC.WT,mtrD.WT
ciprofloxacin_NWT: gyrA.D95_A,gyrA.S91F,parC.S87R
ciprofloxacin_WT: parC.D86_WT,parC.E91_WT
spectinomycin_NWT: (empty)
spectinomycin_WT: 16S.C1184_WT,rpsE.T24_WT
gepotidacin_NWT: (empty)
gepotidacin_WT: gyrA.A92_WT,parC.D86_WT

Interpretation:

  • Ceftriaxone: Resistant (mosaic penA with key resistance mutations)
  • Azithromycin: Resistant (23S rRNA mutation at position 2059)
  • Ciprofloxacin: Resistant (gyrA mutations at codons 91 and 95)
  • Spectinomycin: Susceptible (16S C1184 and rpsE T24 both wild-type)
  • Gepotidacin: Susceptible (excluded only when gyrA A92T and parC D86N occur together; neither is present)
  • Treatment: XDR - requires alternative regimen or newer oral agents

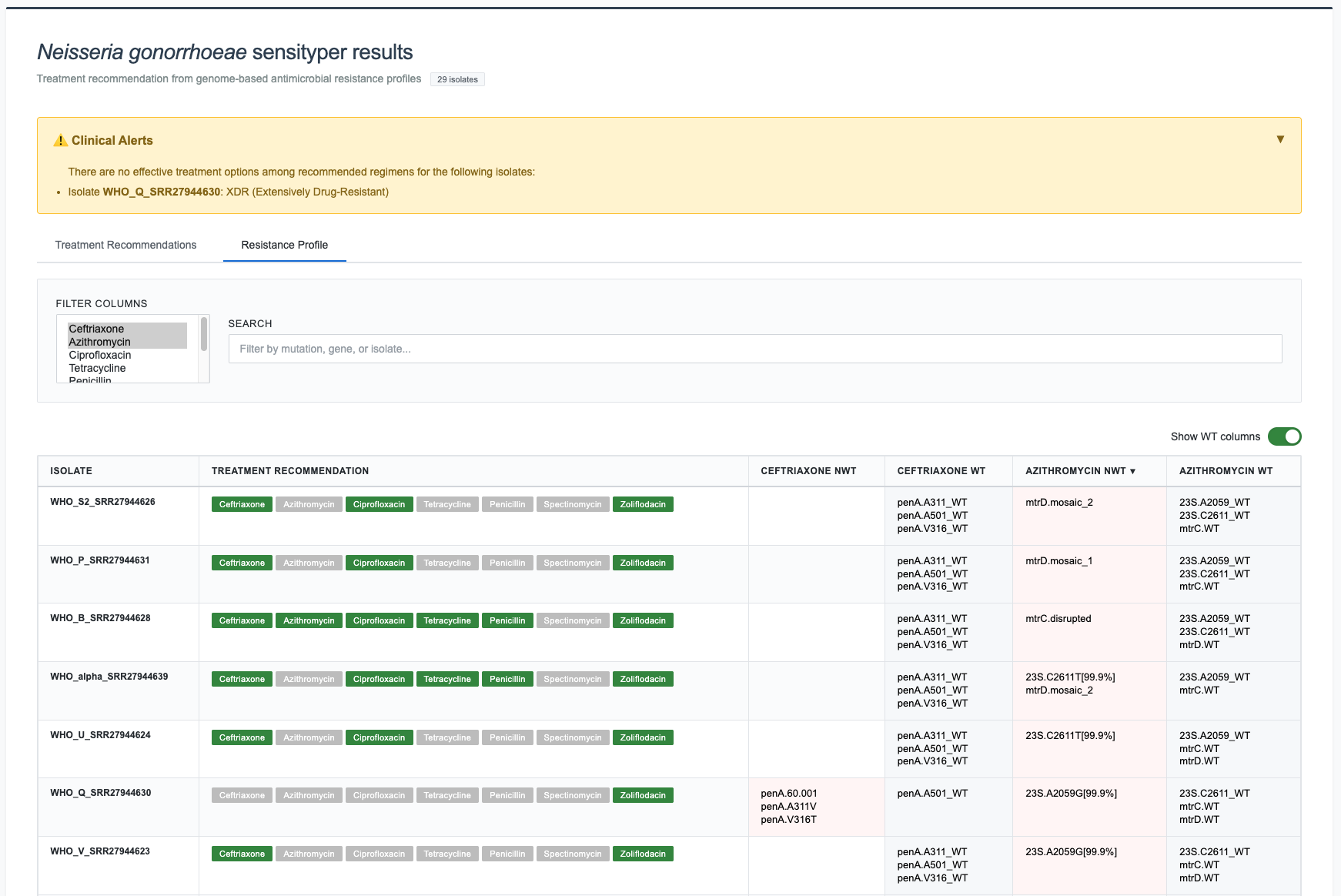

Explore WHO_strains_sensitreat.html

Open the HTML file in your web browser:

open WHO_strains_sensitreat.html  # macOS
xdg-open WHO_strains_sensitreat.html  # Linux
start WHO_strains_sensitreat.html  # Windows

Interactive Features:

  • Click column headers to sort (▲/▼ indicators)
  • Search box for live filtering
  • Antibiotic filter (multi-select dropdown)
  • Color coding: Red=resistance (NWT), Blue=susceptible (WT)
  • Pagination (10/25/50/100/All entries per page)

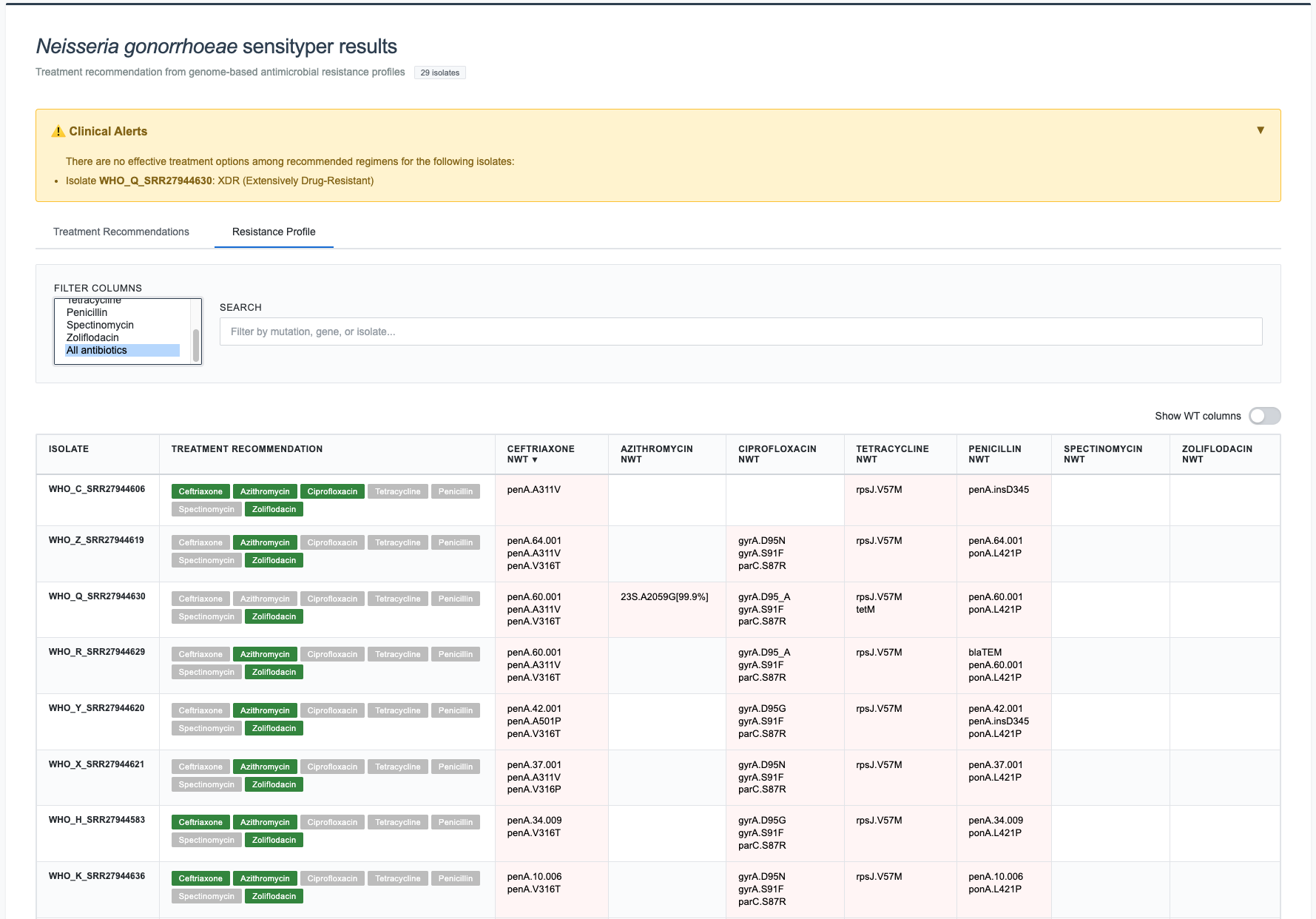

  • WT columns to show or hide identified wildtype positions

Step 4: Assign Treatment Recommendations

The sensitreat module assigns evidence-based treatment regimens based on resistance profiles.

Command

sensityper sensitreat \
    --input_file WHO_strains_sensitype.tsv \
    --treatment_output WHO_strains_sensitreat.tsv

Arguments:

  • --input_file: Resistance TSV from Step 3
  • --treatment_output: Output file path for treatment recommendations
  • --available_antibiotics: (Optional) Limit to available antibiotics (default: all except azithromycin monotherapy)
  • --sensitreat_order: (Optional) Customize regimen priority order

Expected Runtime

  • ~2-5 seconds for 29 isolates

Expected Output Files

  1. alert_output.tsv - XDR/untreatable isolates flagged for review
  2. WHO_strains_sensitreat.tsv - Treatment recommendations per isolate
  3. WHO_strains_sensitreat.html - Combined tabbed HTML with both resistance and treatment tables

Pre-computed versions are available in examples/sensityper_output/.

Inspect WHO_strains_sensitreat.tsv

head -n 3 WHO_strains_sensitreat.tsv | cut -f1,4-6

Expected Output (truncated):

isolate            Predicted Profile                                                       Recommended Treatment                         Comment
WHO_A_SRR27944640  ceftriaxone=YES, azithromycin=YES, ciprofloxacin=YES, tetracycline=YES,  Ceftriaxone 1 g IM + Azithromycin 2 g orally  Acceptable combination therapy
                   penicillin=YES, spectinomycin=NO, zoliflodacin=YES, gepotidacin=YES
WHO_B_SRR27944628  ceftriaxone=YES, azithromycin=YES, ciprofloxacin=YES, tetracycline=YES,  Ceftriaxone 1 g IM + Azithromycin 2 g orally  Acceptable combination therapy
                   penicillin=YES, spectinomycin=YES, zoliflodacin=YES, gepotidacin=YES

Inspect alert_output.tsv

cat alert_output.tsv

Expected Output (if XDR isolates present):

Alert  isolate           treatment recommendation
XDR WHO_Q_SRR27944630   spectinomycin,zoliflodacin,gepotidacin

Alert Types:

  • XDR: Extensively Drug-Resistant (resistant to ceftriaxone, azithromycin, AND ciprofloxacin)
  • None: No suitable treatment available from specified antibiotics

Interpreting Treatment Recommendations

Example 1: WHO_A_SRR27944640 (Susceptible)

Predicted Profile:       ceftriaxone=YES, azithromycin=YES, ciprofloxacin=YES, tetracycline=YES, penicillin=YES, spectinomycin=NO, zoliflodacin=YES, gepotidacin=YES
Recommended Treatment:   Ceftriaxone 1 g IM + Azithromycin 2 g orally
Comment:                 Acceptable combination therapy

Clinical Interpretation:

  • Regimen: Standard dual therapy (first-line)
  • Route: Ceftriaxone intramuscular (IM), Azithromycin oral
  • Rationale: Susceptible to both agents, combination prevents resistance development
  • Category: Acceptable combination therapy (preferred dual therapy)

Example 2: WHO_R_SRR27944629 (Ceftriaxone-Resistant)

Predicted Profile:       ceftriaxone=NO, azithromycin=YES, ciprofloxacin=NO, tetracycline=NO, penicillin=NO, spectinomycin=YES, zoliflodacin=YES, gepotidacin=YES
Recommended Treatment:   Spectinomycin 2 g IM + Azithromycin 2 g orally
Comment:                 Alternative regimen

Clinical Interpretation:

  • Regimen: Alternative dual therapy (ceftriaxone resistance detected)
  • Route: Both intramuscular or oral
  • Rationale: Avoid ceftriaxone due to resistance, use spectinomycin + azithromycin
  • Category: Alternative regimen
  • ⚠️ Important: Spectinomycin has lower cure rates for pharyngeal infections - avoid when possible

Example 3: WHO_Q_SRR27944630 (XDR)

Predicted Profile:       ceftriaxone=NO, azithromycin=NO, ciprofloxacin=NO, tetracycline=NO, penicillin=NO, spectinomycin=YES, zoliflodacin=YES, gepotidacin=YES
Recommended Treatment:   Spectinomycin 2 g IM
Comment:                 Lower cure rates in oropharyngeal infection; avoid as monotherapy for oropharyngeal infection when possible
Alert:                   XDR

Clinical Interpretation:

  • Regimen: Spectinomycin monotherapy (highest-priority available regimen; zoliflodacin and gepotidacin are also predicted active)
  • Alert: XDR isolate - flagged for clinical review
  • Action Required:
  • Confirm infection site (spectinomycin ineffective for pharyngeal)
  • Consider newer oral agents (zoliflodacin, gepotidacin)
  • Consult infectious disease specialist
  • Report to public health authorities
  • Ensure test of cure after treatment

Treatment Recommendation Categories

Guideline-recommended monotherapy:

  • Ceftriaxone 1 g IM
  • Used when: Azithromycin resistance detected OR azithromycin unavailable

Acceptable combination therapy:

  • Ceftriaxone 1 g IM + Azithromycin 2 g orally
  • Used when: Both agents susceptible
  • Preferred regimen for uncomplicated gonorrhea

Alternative regimen:

  • Spectinomycin 2 g IM + Azithromycin 2 g orally
  • Used when: Ceftriaxone resistance detected
  • ⚠️ Lower cure rates for pharyngeal infections

Newer oral options:

  • Zoliflodacin 3 g orally (single dose)
  • Gepotidacin 3 g orally twice (2 doses, 10-12 h apart)
  • US FDA-approved for uncomplicated urogenital infection; lower cure rates in oropharyngeal infection

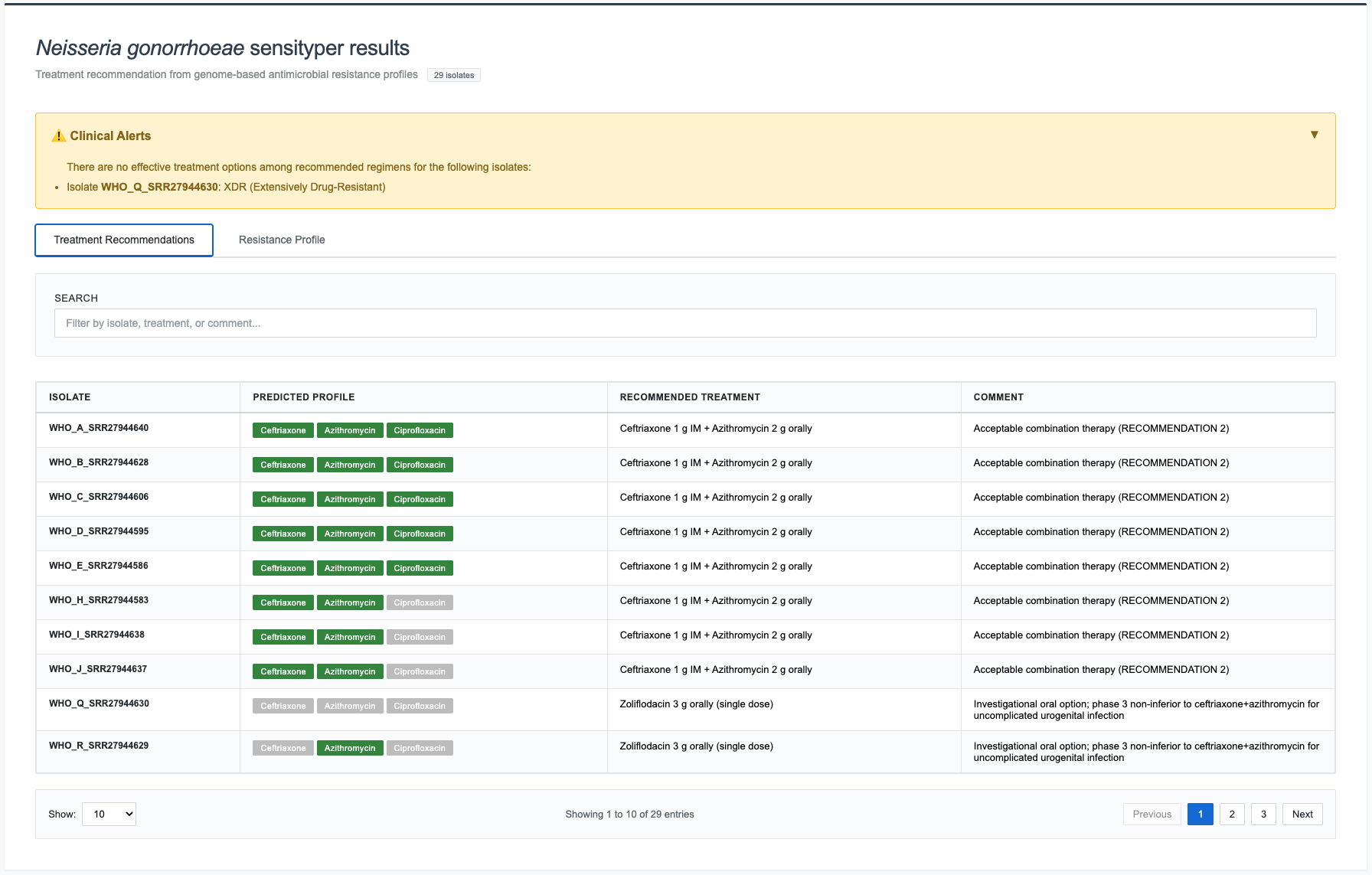

Step 5: Explore Combined HTML Report

The combined HTML report is the primary output for clinical interpretation and surveillance.

Open WHO_strains_sensitreat.html

open WHO_strains_sensitreat.html  # macOS
xdg-open WHO_strains_sensitreat.html  # Linux
start WHO_strains_sensitreat.html  # Windows

A pre-computed version is available at examples/sensityper_output/WHO_strains_sensitreat.html.

HTML Structure

Report Header: shows the isolate count and the antibiotics available for treatment in this setting, as passed to --available_antibiotics. These gate which regimens sensitreat may choose, so an isolate predicted susceptible to a drug that is not available will not be assigned it.

Alert Banner (if applicable):

⚠️ Clinical Alerts
• Isolate WHO_Q_SRR27944630: XDR (Extensively Drug-Resistant) - Requires clinical review

Tab Navigation: - Tab 1: Treatment Recommendations (shown by default) - Tab 2: Resistance Profile (detailed mechanisms)

Tab 1: Treatment Recommendations

Columns (4 total):

  1. Isolate - Sample identifier
  2. Predicted Profile - Color-coded susceptibility badges
  3. Green badge = YES (susceptible)
  4. Gray badge = NO (resistant)
  5. Recommended Treatment - Full regimen with dosing instructions
  6. Comment - Clinical guidance and recommendation category

Interactive Features:

  • Sort: Click column headers
  • Search: Live filtering across all columns
  • Pagination: 10/25/50/100/All entries per page

Treatment Recommendations tab — colour-coded susceptibility badges and regimen assignments per isolate

Tab 2: Resistance Profile

Columns (varies by antibiotic):

  • isolate
  • Predicted Profile - the same colour-coded susceptibility badges as Tab 1
  • For each antibiotic: {antibiotic}_NWT, {antibiotic}_WT

Interactive Features:

  • Sort: Click column headers
  • Search: Live filtering
  • Antibiotic Filter: Multi-select dropdown
  • Pagination: Same as Tab 1

Resistance Profile tab — NWT (red) and WT (blue) columns for all antibiotics

WT columns can also be hidden with the 'Show WT' switch: Resistance Profile tab — filtered view showing only NWT columns (WT columns hidden)

Complete Pipeline (Alternative Approach)

Instead of running modules separately, use the pipeline module for end-to-end automation. The pre-computed outputs in examples/ were generated with this single command:

Single Command

sensityper pipeline \
    --modules ariba,sensitype,sensitreat \
    --other_arguments '--input_dirs /path/to/PRJNA1067895_Illumina \
                       --output_dir PRJNA1067895_ARIBA \
                       --sensiscript_outfile WHO_strains_sensitype.tsv \
                       --treatment_output WHO_strains_sensitreat.tsv'

What Happens

  1. ARIBA module: Processes FASTQ files → ariba_output/ariba_summary.csv
  2. Sensitype module: Analyzes ARIBA output → WHO_strains_sensitype.tsv
  3. Sensitreat module: Assigns treatments → WHO_strains_sensitreat.tsv + WHO_strains_sensitreat.html

Benefits of the pipeline mode

  • Single command: Less manual intervention
  • Optimized HTML: Only one combined HTML generated (no duplicate standalone HTML)
  • Automatic chaining: Output of one module feeds into next

When to Use Separate Modules

  • Re-running analysis: Already have ARIBA results, only need to update treatment logic
  • Custom antibiotics: Want to analyze different antibiotic subsets
  • Debugging: Isolate specific module failures
  • External ARIBA: Using ARIBA results from another study

Next Steps

Using Your Own Data

  1. Prepare FASTQ files:
  2. Ensure paired-end reads (R1/R2)
  3. Follow naming convention

  4. Place in a single directory

  5. Run pipeline:

    sensityper pipeline ariba,sensitype,sensitreat \
    --other_arguments "--input_dirs /path/to/your/fastqs \
                       --output_dir my_analysis \
                       --sensiscript_outfile my_resistance.tsv \
                       --treatment_output my_treatment.tsv \
                       --threads 16"

  6. Review outputs:

  7. Check alert_output.tsv for XDR isolates
  8. Open the generated HTML report for interactive results
  9. Share HTML with clinical team (self-contained, no external dependencies)

Customizing treatment recommendations

Limit to available antibiotics:

sensityper sensitreat \
    --input_file my_resistance.tsv \
    --available_antibiotics ceftriaxone,azithromycin,spectinomycin \
    --treatment_output my_treatment.tsv

Change regimen priority:

sensityper sensitreat \
    --input_file my_resistance.tsv \
    --sensitreat_order ceftriaxone,azithromycin+spectinomycin,spectinomycin \
    --treatment_output my_treatment.tsv

Batch processing multiple studies

# Process multiple sequencing runs
sensityper ariba \
    --input_dirs /data/run1,/data/run2,/data/run3 \
    --output_dir batch_ariba \
    --threads 32

# Continue pipeline
sensityper pipeline sensitype,sensitreat \
    --input_AMRtable batch_ariba/ariba_summary.csv \
    --sensiscript_outfile batch_resistance.tsv \
    --treatment_output batch_treatment.tsv

Clinical Reminder

This tool is for surveillance and research. Clinical decisions should consider: - Patient allergies and contraindications - Infection site (pharyngeal vs. urogenital) - Local resistance patterns - Current treatment guidelines - Treatment history and previous failures

Always consult infectious disease specialists for: - XDR isolates - Treatment failures - Severe infections (disseminated, PID) - Immunocompromised patients

Additional Resources

  • README.md - Installation and quick start
  • ARIBA documentation - https://github.com/sanger-pathogens/ariba
  • WHO gonorrhea guidelines - https://www.who.int/publications/i/item/9789241549691
  • CDC gonorrhea treatment - https://www.cdc.gov/std/treatment-guidelines/gonorrhea.htm

Questions or Issues?

  • Open an issue on GitHub!
